Application:
Aerospace wire, military standard wire, QSFP, high frequency cable with single/double layers taping
Suitable materials:
PTFE tape, semi-directional tape, silver plated tape, polyimide tape, Aluminum foil, Mylar tape, copper foil
RETURN

Machine features:Machine features:

1. Servo motor driven taping design, tension controlling remains stable from full reel to empty reel

2. Live display dynamic tension changing

3. Both bobbin/pad tape applicable, both round cable/ flat cable applicable

4. Auto stop machine once tape breaks or finishes, with function of auto retreating

Application	Aerospace wire, military standard wire, QSFP, high frequency cable with single/double layers taping
Suitable materials	PTFE tape, semi-directional tape, silver plated tape, polyimide tape, Aluminum foil, Mylar tape, copper foil
Model	TAP200
Rotate speed	Max 1250rpm
Suitable wire dia.	Ф0.2-5.0mm（(both round/flat cable applicable)
Tape width	2-15mm
Tape thickness	0.015-0.2mm
Tape tension	50-1500g

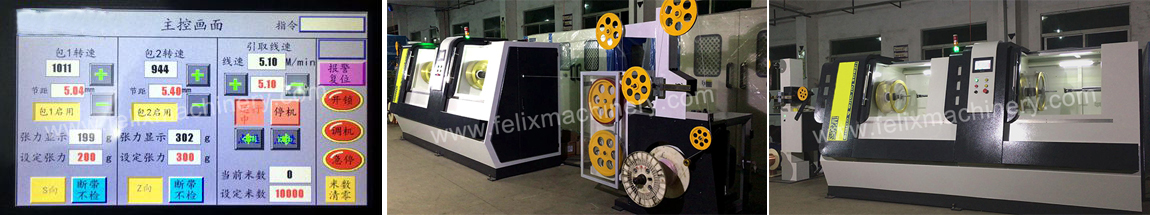

Tension display	Live display dynamic tension changing
Taping pitch	1-20 mm
Pitch tolerance	±1% at constant speed; ±1.5% when accelerate or decelerate
Overlapping rate	5-67%
Taping direction	S/Z
Tape dimension	Pad tape: Φ300(OD)xΦ76(inner hole)x20mm(W) Bobbin tape: Φ220(OD)xΦ76(inner hole)x100mm(H)
Tension control	Servo motor with tension sensor controlling the tension
Control system	Fully automatic PLC controller
Break tape detection	Output non-touch optical and acoustics alarm signal and shutdown once tape break happens
Finish tape detection	Output non-touch optical and acoustics alarm signal once tape is about to be used up
Break wire detection	Output non-touch optical and acoustics alarm signal and shutdown once wire break happens
Auto retreat function	Auto retreating and taping again when tape breaks, makes it less joints
Taping head drive	Servo motor
Taping plate drive	Servo motor
